Bus visualiszation

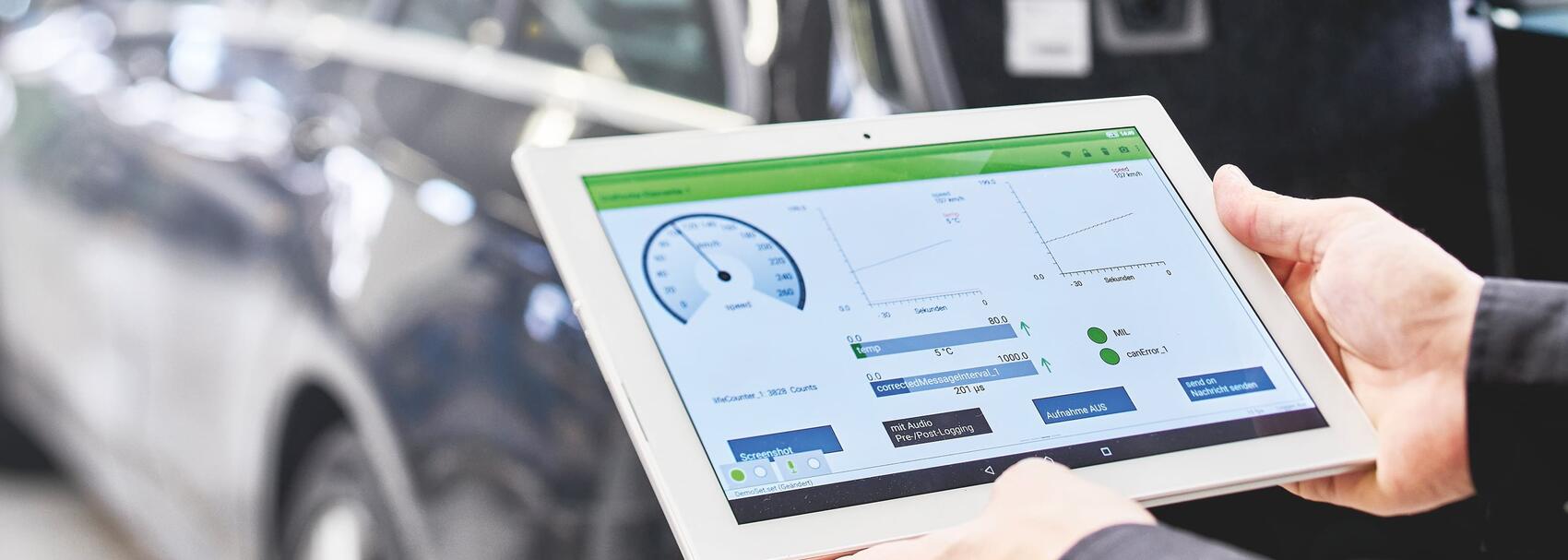

Analyzing bus data has never been so user-friendly. With our Can Bus Analyzer software, you can quickly and easily view CAN, LIN or FlexRay data on a smartphone or tablet. The high-definition touch-screens of mobile devices are perfect for displaying the required signals. Via Bluetooth or Wifi, you can wirelessly connect a matching bus interface to your mobile device and evaluate your data on it. The system is quick to set up and intuitive to use, even for beginners. You can very quickly create and save your own display sets.

You can upload CANdb, ldf, AUTOSAR XML and FIBEX files to the FL3X Config as the basis for selecting the signals to be visualized. Available visualization elements include graphs, speedometers, buttons, traffic lights, labels and many more, all of which can be freely positioned on the user interface. The Can Bus Analyzer software provides an alert function for limit value overranging. An additional innovative feature is logging of selected signals with optional voice recording, activated by a trigger signal or by clicking. Pre- and post-logging mechanisms are also provided.
